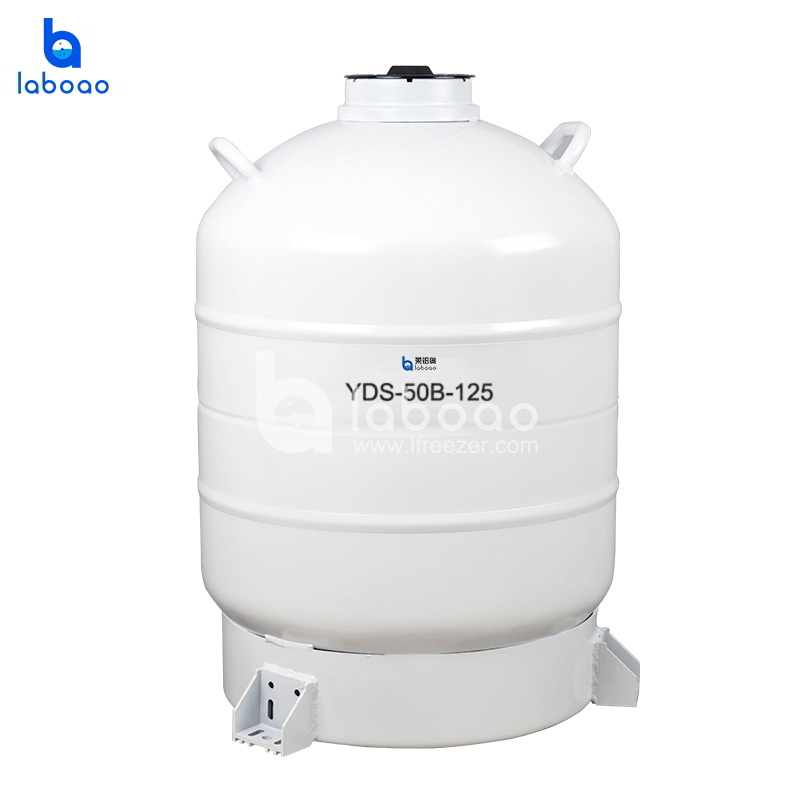

Large Caliber Liquid Nitrogen Tank

YDS Series
This series of liquid nitrogen tank has a large caliber and is suitable for short-term storage of liquid nitrogen, storage of larger-volume biological specimens, or using liquid nitrogen to cold assembly of larger parts. It has the advantages of large storage capacity, small space occupation, and easy operation.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

Liquid nitrogen container is often used for long-term low-temperature storage and transportation of livestock frozen semen, vaccines, cells, microorganisms, etc., using liquid nitrogen as a refrigerant. It is widely used in animal husbandry bureaus, breeding farms, universities, scientific research institutes, medical treatment, national defense, machinery, electronics, energy and other industries.

Liquid nitrogen container is made of aviation aluminum and structured with high-vacuumed super adiabatic multi-layers. It is light by weight and the daily evaporation rate of liquid nitrogen is very low.

FEATURES

1. Made of high-strength aviation aluminum alloy;

2. Optional drawer type square lifting cylinder, easy to identify and independent access to samples;

3. It can store human and animal organs and cold-assemble larger parts;

4. Equipped with a protective cover, which can prevent the product from bumping and impact during use;

5. Optional special transport vehicle to facilitate indoor movement;

6. Optional liquid level alarm to ensure the safety of stored samples;

SPECIFICATIONS

Model

Capacity(L)

Caliber(mm)

Outer   diameter(mm)

Height(mm)

Net   weight(kg)

Storage   time(day)

YDS-15-50

16

50

384

640

10.1

150

YDS-15-125

16

125

354

600

8.2

50

YDS-20-50

20

50

386

640

11.2

175

YDS-30-50

31

50

438

700

13.8

260

YDS-30-80

31.5

80

438

700

15.8

155

YDS-30-125

31.5

125

438

680

15.4

100

YDS-30-210

30

210

438

660

15.4

65

YDS-35-50

35.5

50

438

730

14.1

290

YDS-35-80

35.5

80

438

720

16

170

YDS-35-125

35.5

125

438

700

16.5

110

YDS-35-210

35

210

438

680

16.6

80
