YDD-800CB Stainless Steel Liquid Nitrogen Tank Monitoring System

YDD-800CB Series
Liquid nitrogen tank is made of aviation aluminum and structured with high-vacuumed super adiabatic multi-layers. It is light by weight and the daily evaporation rate of liquid nitrogen is very low.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

The YDD-800CB series are medium-scale high-density storage, providing users with a fully automatic, safe and reliable ultra-low temperature liquid nitrogen storage system. It can store 36400-42000 2ml cryotubes. The bottom of the tray is designed with large capacity liquid nitrogen. When storing in gas phase, the temperature difference in the entire storage area does not exceed 10℃, and the lowest temperature at the top of the freezer shelf can reach -190℃.

FEATURES

1. Fully automatic refill system and hot air exhaust system;

2. Standard equipped with vacuum inlet hose;

3. Vapour phase storage, the top temperature is up to -190°C;

4. Standard double step;

5. Optional battery backup;

6. The microprocessor-based temperature and liquid nitrogen level monitoring system closely monitors the operation of the equipment to ensure sample safety;

7. The standard integrated folding step, auxiliary workbench and ergonomic cover design ensure the safety and simplicity of the equipment;

8. Compatible with liquid nitrogen gas phase and liquid phase storage modes, it can ensure excellent temperature uniformity and stability in the entire tank even when the lid is opened for a long time;

9. Multiple humanized designs, comfortable operation and lockable lid, fully guarantee the safety of samples;

10. When liquid nitrogen is filled, the nitrogen in the pipeline is automatically discharged to reduce the influence on the internal temperature of the tank and ensure the safety of stored samples.

SPECIFICATIONS

Model

YDD-760-445P/GP

YDD-800-445P/GP

YDD-800-445P/GP

Size

Caliber(mm)

445

445

445

Effective   Height(mm)

730

780

780

Inner   diameter(mm)

980

980

980

Outer   diameter(mm)

1105

1105

1105

Height(mm)

1550

1605

1605

Empty   weight(kg)

348

355

355

Full   Weight(kg)

942

1004

1004

Maximum   storage capacity

1.2/2ml   Vials

36400

39200

42000

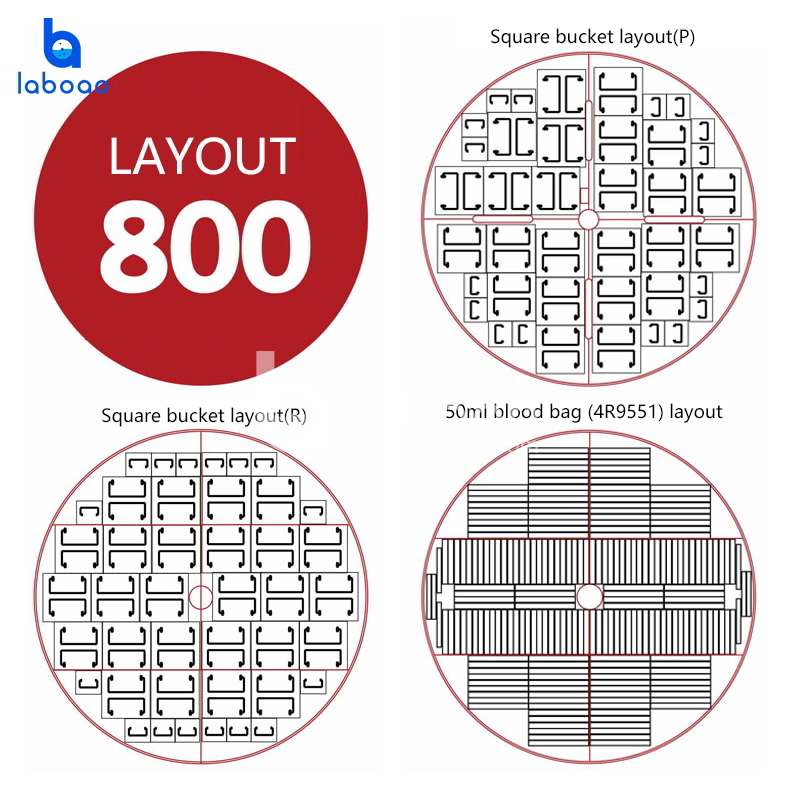

Quantity   of square pail(10*10)

24

24

26

Quantity   of square pail(5*5)

16

16

16

Layer   of square pail

13

14

14

Performance

Volume   of liquid nitrogen(L)

730

797

797

Volume   of liquid nitrogen below the pallet(L)

133

133

133

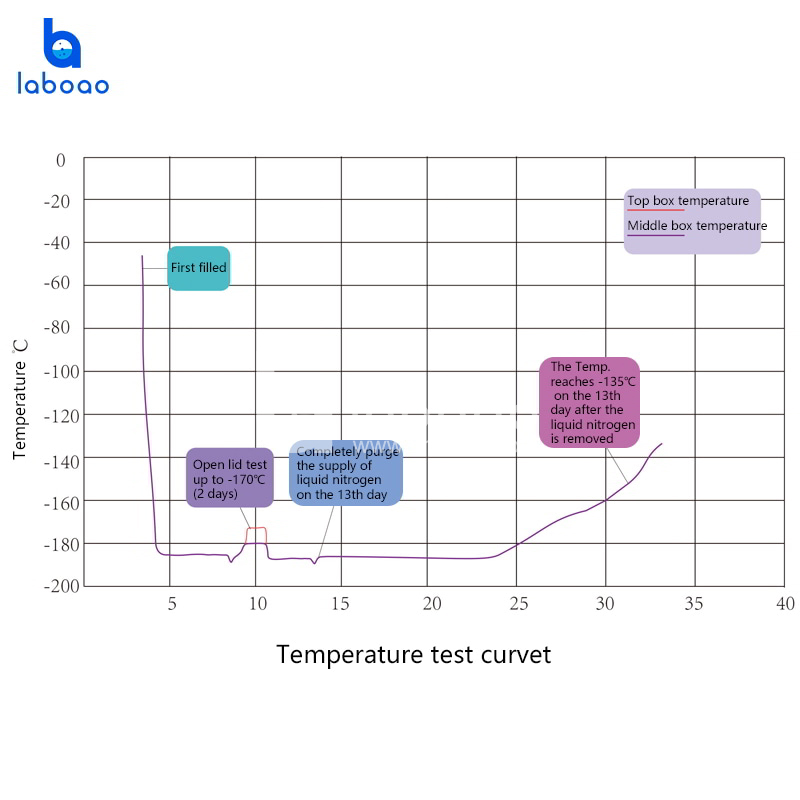

Static   liquid nitrogen storage days(gas phase)

20

20

20

Static   liquid nitrogen storage days(liquid phase)

112

118

118

Capacity for   blood bag

25ml

4338/9/482

4338/9/482

4464/9/496

50ml

1488/6/248

1736/7/248

1687/7/241

250ml

812/4/203

812/4/203

768/4/192
