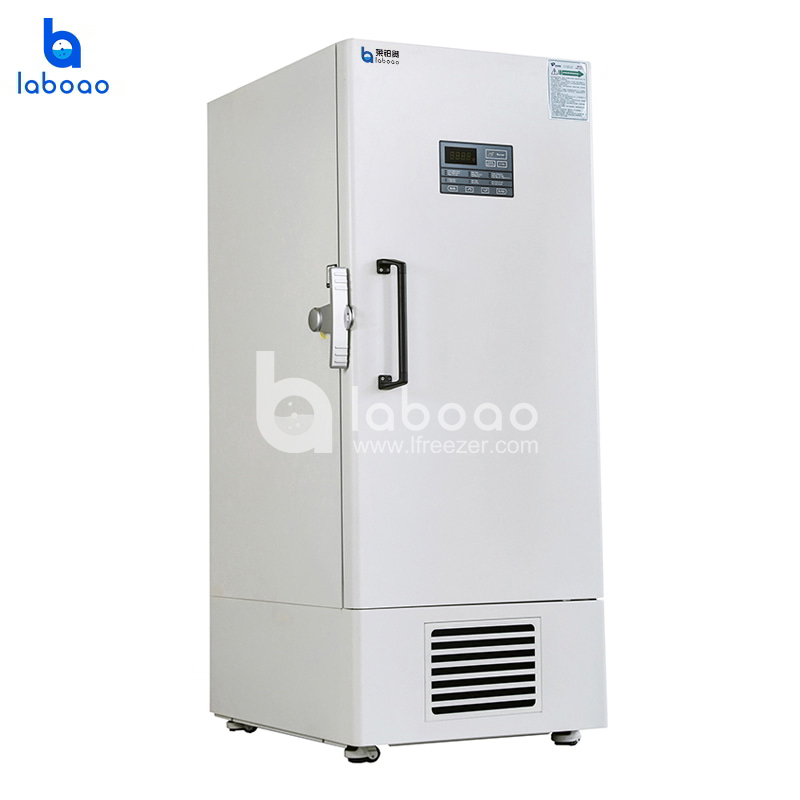

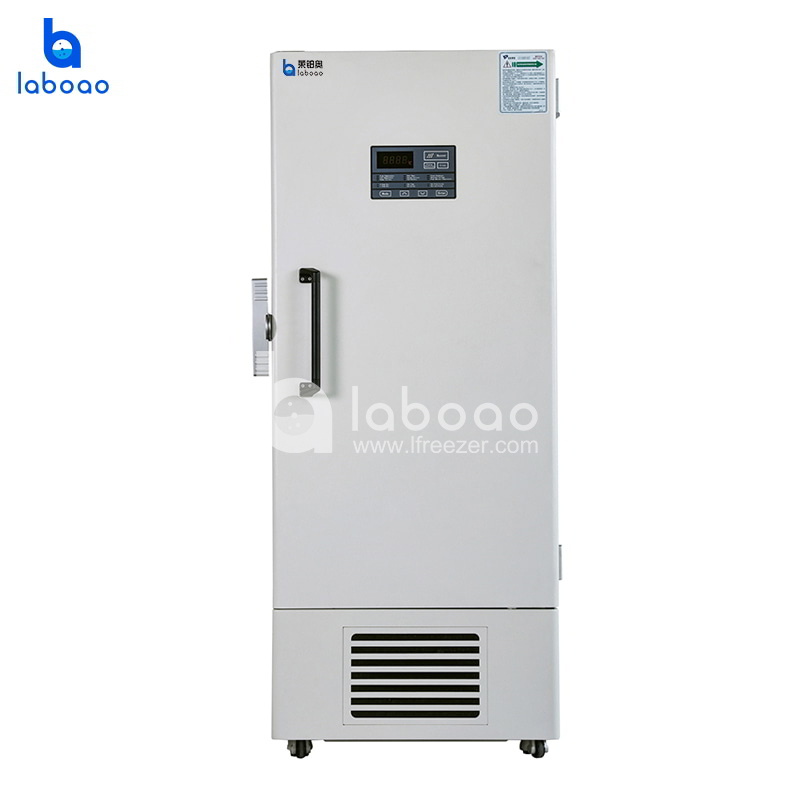

588L -86°C Ultra Low Temperature Freezer with Self-Cascade System
- Volume588L
- Temperature Range-40℃~-86℃
- Power800W
- Net Weight249kg
- Interior Dimensions606×738×1310mm
- Exterior Dimensions872×1060×1994.5mm
OVERVIEW
SAFETY
Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient , abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.
Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.
Door open feature standard and USB port for temperature date downloading standard on upright models. Remote alarm contacts.
KEY DESIGN FEATURES
Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment Settable high temperature and low temperature alarms.
Automatic clean-filter alarm and sensor error alert. Adjustable storage shelf height Optional temperature recorder, storage racks and storage box
INSTALLATION AND APPLICATION
Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature
FILED PROVEN RELIABILITY
Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
Specialized control system design for a well-balanced operation of cascade refrigeration system. Positive filed proven reliability record.
ENERGY SAVING
Unique door seal design for the minimum loss of cold temperature during a door opening.
High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
SPECIFICATIONS
Specifications | Model | LDF-86V588E |
Shelf/drawer QTY | Stainless steel shelf/3 | |
Cooling | Direct cooling | |
Defrost | Manual | |
Refrigerant | Mixed-gas | |
Power Consumption(kWh/24h) | 12.5 | |
Noise(db) | 50 | |
Ambient temperature(℃) | 10~32℃ | |
Temperature range(℃) | -40~-86℃ | |
Cooling system | Compressor brand/QTY | SECOP/2 |
Sensor | PTC | |
Temperature controller | Microprocessor | |
Display | Digital display | |
Power | Voltage/frequency(V/Hz) | 220/50Hz |
Power(W) | 800W | |
Current(A) | 6.9 | |
Material | Inside material | Stainless steel |
Outside material | Color sprayed steel | |
Insulation | PURF | |
Size | Capacity(L/cu.ft) | 588\20.76 |
NT./GT.(kg) | 249/275 | |
Exterior size(W*D*H)(mm) | 872×1060×1994.5 | |
Interior size(W*D*H)(mm) | 606×738×1310 | |
Package size(W*D*H)(mm) | 970×1140×2190 | |
Frozen Racks | Racks | 16(5X5) |
Boxes(2 Inches) | 400 | |
Samples(2ml) | 40000 | |
Alarm | High/low temperature | Y |
Power failure | Y | |
Abnormal voltage | Y | |
Sensor error | Y | |
Filter screen check | Y | |
Thermostat failure | Y | |
Low battery | Y | |
Condenser clean | Y | |
High ambient temperature | Y | |
Door ajar | Y | |
Castor | Y | |
Inside door | 2 | |
Test hole QTY/diameter | 1/25MM | |
USB port | Y | |
Chart recorder | / | |
Data logger | Optional | |
Power failure backup system(alarm) | 72h | |
Remote alarm port | Y | |
CO2 back up system | Optional | |
LN2 back up system | Optional | |
Certification | Certification | ISO.CE |
8 Good Reasons To Choose LABOAO 588L -86°C Ultra Low Temperature Freezer with Self-Cascade System
-
3 individual inner doors can be opened independently to minimize frost buildup inside the chamber
-
Unique door seal design for the minimum loss of cold temperature during a door opening
-
Stainless Steel inner handle to ensure the door open conveniently even in the case of frost
-
Excellent Doors Seals 5 gasket seal, 4 seals for outdoor, 1 seal for inner door which provides maximum protection against thermal intrusion
-
Big Door handle, easy to open
-
Controller Panel with press button Alarm status shows on it, easy for attention
-
Sample port on back for temperature monitoring conveniently
-
Big condenser for better heat dissipation, Ambient Temperature sensor
