LDW-HL1008S

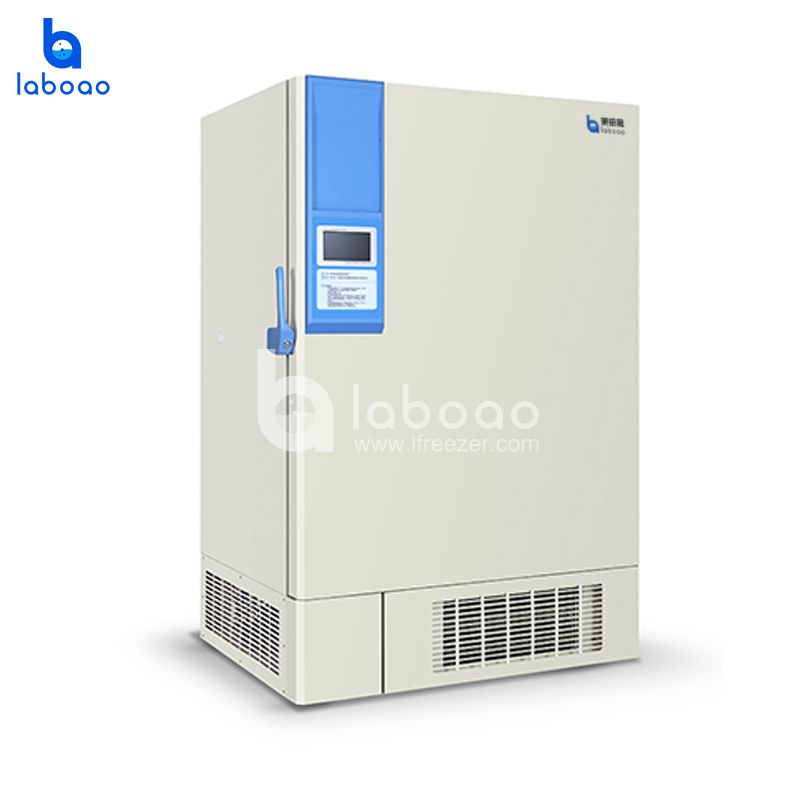

LABOAO offers the 1008L -86°C Ultra low temperature freezer with 4 independent inner doors. The optimized foaming insulation inside the doors provides better temperature performance. This ultra-low temperature freezer is specially designed to meet the demands for long-term and safe storage of the high-valued medical and laboratory materials.
  • Volume1008L
  • Temperature Range -40℃~-86℃
  • Power1850W
  • Net Weight430kg
  • Interior Dimensions1362×1025×2002mm
  • Exterior Dimensions1022×696×1378mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW


The deep freezer for laboratory and medical comes with 4 independent inner doors. The optimized foaming insulation inside the doors provides better temperature performance. This ultra-low temperature freezer is specially designed to meet the demands for long-term and safe storage of the high-valued medical and laboratory materials.

High configuration control system

The ultra-low freezer has a new look 7 inches LED touch screen display, giving you more user-friendly and convenient interface. And it makes sure the temperature display accurately in 0.1℃. And you are free to set the inside temperature from -40°C~-86°C.

Safety alarm system

This ultra-cold freezer provides 10 types of audible and visible alarms. The safety alarm system includes high or low temperature alarm, door ajar alarm, power failure alarm, condenser overheating alarm, and system failure alarm.

Exquisite structure design

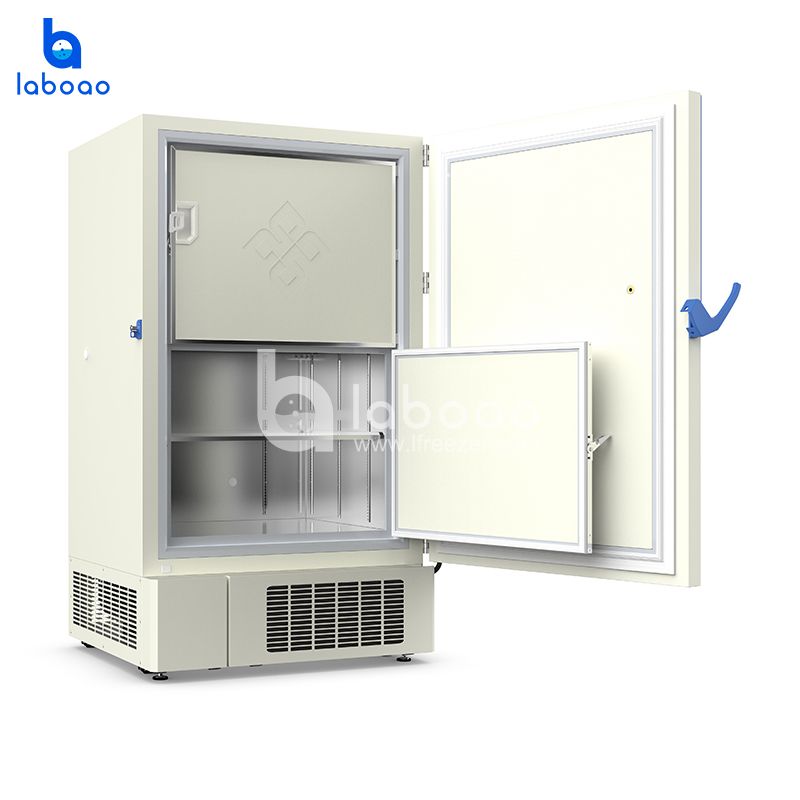

This ultra-low freezer is designed with 4 independent inner doors with foaming insulation, which can ensure better temperature performance. The external material is made of high quality structure steel, while inner material is made of Galvanized steel sheet( optional stainless steel). And the storage structure is designed with 3 high strength SUS304 shelves, which is resistant to corrosion and easy to clean.

FEATURES

1. Equipped with Embraco compressor and famous Germany brand EBM fans

2. Adopted CFC-free patent hydrocarbon refrigerant for fast refrigeration and ensuring environment friendly

3. PT-100 platinum resistance sensors for sensitively detecting the temperature changes

4. Lockable keyboard and password protected to prevent from adjusting parameters without authorizing

5. Equipped with VIP Plus vacuum insulation panel in 130mm foaming insulation to ensure the stability of temperature

6. Designed with lockable front door with full height handle to prevent from unauthorized access

7. For safe storage, it allows machine startup delay and power off protection.

8. For the casters, it is fitted with 4 PCS casters and 2 leveling feet for easy moving.

9. The optional configurations are warning lamp, smart temperature monitor system, temperature recorder, and CO2 back-up system.

10. With twin-compressor, if one is damaged, the other one could keep the temperature at -70℃ stably.

SPECIFICATIONS

Model

LDW-HL1008S

Specifications

Shelf/drawer QTY

Stainless   steel shelf/3

Cooling

 Direct cooling

Defrost

Manual

Refrigerant

HC Mixture   gas

Ambient temperature(℃)

16~32

Temperature range(℃)

-40~-86

Cooling system

Compressor QTY

2

Temperature controller

Microprocessor

Display

Touch   Screen

Power

Voltage/frequencyV/Hz)

220/50Hz

PowerW)

1850W

CurrentA)

11.8

Material

Inside material

Galvanized   steel sheet

Outside material

High   quality steel plates with spraying

Insulation Thickness(mm)

130

Size

CapacityL)

1008

NT./GT.kg)

430/559

Exterior size(W*D*H)(mm)

1362×1025×2002

Interior size(W*D*H)(mm)

1022×696×1378

Package size(W*D*H)(mm)

1475×1155×2176

Alarm

High/low temperature

Y

Power failure

Y

Sensor error

Y

Main board communication error

Y

Built-in data logger USB failure

Y

Condenser overheating failure

Y

System failure

Y

Door ajar

Y

Accessory

Castor

4+2 leveling feet

Inside door

2

Test hole   QTY/diameter

3pcs. Ø 25 mm

USB port

Y

Backup Battery

Y


Remote alarm contact

Y

Optional

Chart recorder

Optional

CO2 backup system

Optional

Certification

Certification

ISO,CE
