340L -86°C Ultra Low Temperature Freezer with Cascade System 340L -86°C Ultra Low Temperature Freezer with Cascade System
340L -86°C Ultra Low Temperature Freezer with Cascade System 340L -86°C Ultra Low Temperature Freezer with Cascade System

340L -86°C Ultra Low Temperature Freezer with Cascade System

LDF-86V340
LABOAO offers the 340L -86°C Ultra low temperature freezer with cascade system from china manufacture. It's suitable for applying in hospitals, blood bank, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, etc.
  • Volume340L
  • Temperature Range -40℃~-86℃
  • Power1350W
  • Net Weight
  • Interior Dimensions488×607×1140mm
  • Exterior Dimensions854×1072×1907mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

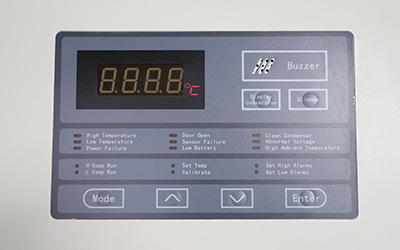

340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Digital display for temperature. Control panel for setting. With alarm light button, clearly to show and easy for attention.
1. Digital display for temperature. Control panel for setting. With alarm light button, clearly to show and easy for attention.

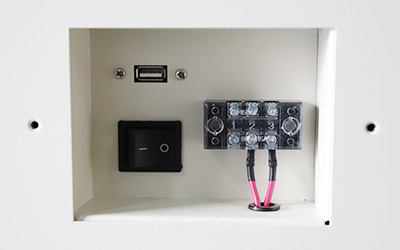

340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Power switch with protector. USB interface.
2. Power switch with protector. USB interface.

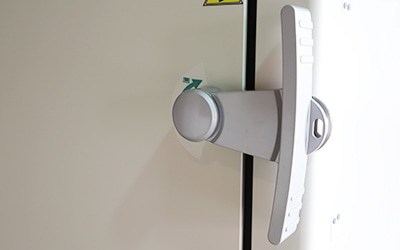

340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Big door handle, easy to open. Can lock as per request.
3. Big door handle, easy to open. Can lock as per request.

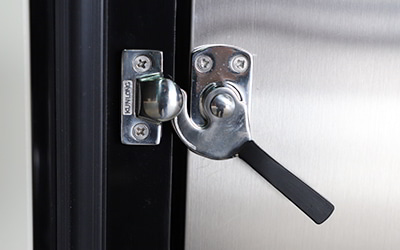

340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Individual inner doors can be opened independently to minimize frost buildup inside the chamber. Stainless steel inner handle to ensure the door open conveniently even in the case of frost.
4. Individual inner doors can be opened independently to minimize frost buildup inside the chamber. Stainless steel inner handle to ensure the door open conveniently even in the case of frost.
340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Stainless steel trays height is adjustable, visible with digital holes, easy to adjust.
5. Stainless steel trays height is adjustable, visible with digital holes, easy to adjust.

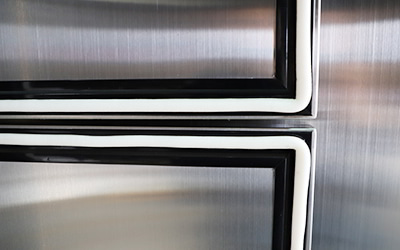

340L -86°C Ultra Low Temperature Freezer with Cascade System detail - Excellent door seal 5gasket seal, 4seals for out door, 1seal for inner door, which provides maximum protection against thermal intrusion.
6. Excellent door seal 5gasket seal, 4seals for out door, 1seal for inner door, which provides maximum protection against thermal intrusion.

OVERVIEW

FILED PROVEN RELIABILITY

Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.

Specialized control system design for a well-balanced operation of cascade refrigeration system. Positive filed proven reliability record.

ENERGY SAVING

Unique door seal design for the minimum loss of cold temperature during a door opening.

High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability. HC Refrigerant with better efficiency & less energy cost, good for environment.

SAFETY

Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient , abnormal voltage,thermostat failure, low battery, condenser clean, door ajar.

Capable of producing two types of alarm outputs, audible buzzer and visible flashing light. Door open feature standard and USB port for temperature date downloading standard on upright models. Remote alarm contacts.

KEY DESIGN FEATURES

Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment Settable high temperature and low temperature

alarms. Automatic clean-filter alarm and sensor error alert. Adjustable storage shelf height Optional temperature recorder, storage racks and storage box

INSTALLATION AND APPLICATION

Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature

SPECIFICATIONS

Specifications

Model

LDF-86V340

Shelf/drawer QTY

Stainless steel shelf/3

Cooling

 Direct   cooling

Defrost

Manual

Refrigerant

R508 & R404

Power Consumption(kWh/24h)

20

Noise(db)

50

Ambient temperature()

10~43

Temperature range()

-40~-86

Cooling system

Compressor brand/QTY

SECOP/2

Sensor

PTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

1350W

Current(A)

5.8

Material

Inside material

Stainless steel

Outside material

Color sprayed steel

Insulation

PURF

Size

Capacity(L/cu.ft)

340\12

NT./GT.(kg)

190/220

Exterior size(W*D*H)(mm)

854×1072×1907

Interior size(W*D*H)(mm)

488×607×1140

Package size(W*D*H)(mm)

937×1075×2135

Frozen Racks

Racks

12(4X4)

Boxes(2 Inches)

192

Samples(2ml)

19200

Alarm

High/low temperature

Y

Power failure

Y

Abnormal voltage

Y

Sensor error

Y

Filter screen check

Y

Thermostat failure

Y

Low battery

Y

Condenser clean

Y

High ambient temperature

Y

Door ajar

Y


Castor

Y

Inside door

2

Test hole QTY/diameter

2/25MM

USB port

Y

Chart recorder

Optional

Data logger

Optional

Power failure backup system(alarm)

72h

Remote alarm port

Y

CO2 back up system

Optional

LN2 back up system

Optional

Certification

Certification

ISO.CE

10 Good Reasons To Choose LABOAO 340L -86°C Ultra Low Temperature Freezer with Cascade System
