408L -86°C Ultra Low Temperature Freezer with Cascade System
- Temperature Range-40℃~-86℃
- Net Weight215kg
- Interior Dimensions606×575×1180mm
- Exterior Dimensions872×940×1945.5mm
FILED PROVEN RELIABILITY

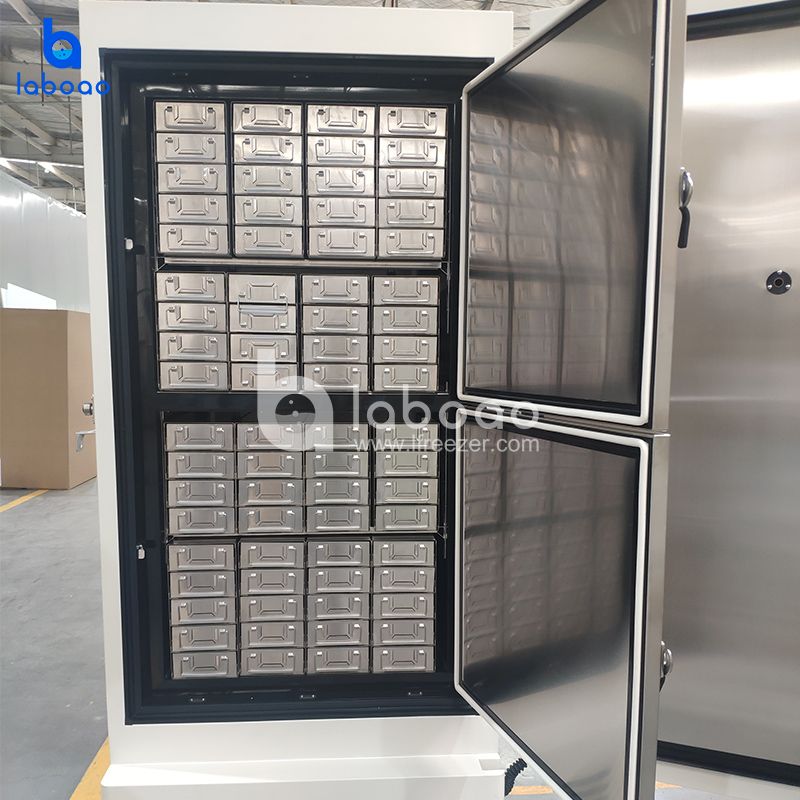

Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
Specialized control system design for a well-balanced operation of cascade refrigeration system. Positive filed proven reliability record.
Unique door seal design for the minimum loss of cold temperature during a door opening.
High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability. HC Refrigerant with better efficiency & less energy cost, good for environment.
Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient , abnormal voltage,thermostat failure, low battery, condenser clean, door ajar.
Capable of producing two types of alarm outputs, audible buzzer and visible flashing light. Door open feature standard and USB port for temperature date downloading standard on upright models. Remote alarm contacts.
KEY DESIGN FEATURES
Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment Settable high temperature and low temperature alarms. Automatic clean-filter alarm and sensor error alert. Adjustable storage shelf height Optional temperature recorder, storage racks and storage box
INSTALLATION AND APPLICATION
Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature
Stainless steel shelf/3
Color sprayed steel
Filter screen check
High ambient temperature
Test hole QTY/diameter
Power failure backup system(alarm)
Remote alarm port
CO2 back up system
LN2 back up system
10 Good Reasons To Choose LABOAO 408L -86°C Ultra Low Temperature Freezer with Cascade System

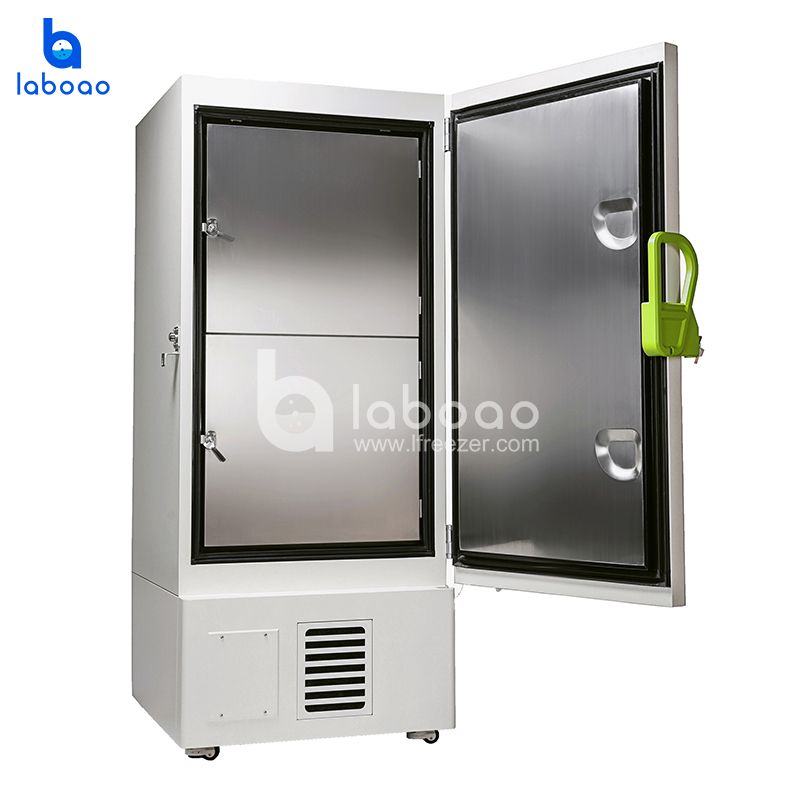

2 individual inner doors can be opened independently to minimize frost buildup inside the chamber
Unique door seal design for the minimum loss of cold temperature during a door opening
Stainless Steel handle to ensure the door open conveniently even in the case of frost
Excellent Doors Seals 5 gasket seal, 4 seals for out door
7 Inches touch Screen All data display on the screen, easy to observe
Write Board for short records which would pass to next user
Green Handle, easy to use with 2 locks
Special V.I.P(Vacuum Insulation Panel) design with extra insulation fatorcuts down heat loss to cabinet by 25%
Big condenser for better heat dissipation
Changeable sensor box or you could put another sensor from here to monitor or record temperature
