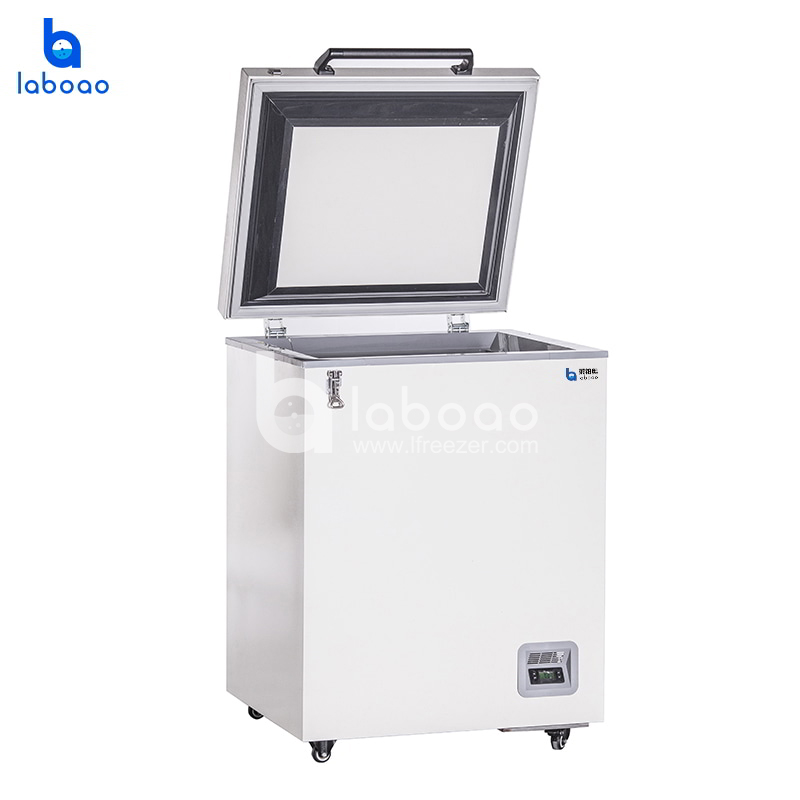

105L -40℃ Medical Freezer

LDF-40H105
LABOAO offers the 105L -40℃ Medical Freezer from china manufacture. This product is designed to store vaccines, blood plasma, and many other biological materials. installations can be found in researching institutions and clinical sites in life science, electronic testing and medical markets.
  • Volume105L
  • Temperature Range-10°C~-40°C
  • Power120W
  • Net Weight62kg
  • Interior Dimensions480×380×665mm
  • Exterior Dimensions680×580×935mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

105L -40℃ Medical Freezer detail - High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
1. High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
105L -40℃ Medical Freezer detail - Safety door lock design to prevent abnormal door open.
2. Safety door lock design to prevent abnormal door open.
105L -40℃ Medical Freezer detail - High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
3. High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
105L -40℃ Medical Freezer detail - Excellent door seal, which provides maximum protection against thermal intrusion.
4. Excellent door seal, which provides maximum protection against thermal intrusion.

OVERVIEW

KEY FEATURES

Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.

Microprocessor control, adjustable temperature range: -20℃ to -40℃LED digital display and increment at 0.1℃.

Permanently lubricated cooling fan for safety and longevity.

Wide voltage band for 187V~242V

SAFETY

Multiple malfunction alarms to detect high and low temperature, sensor error, power failure, temperature controller malfunction.

Two types of alarm indications: audible buzzing and visual flashing light.

CHARACTERISTIC FUNCTION

Door lock design to avoid abnormal door open

Big screen for easy observation

Standard testing hole

RELIABILITY

High density CFC-free urethane foam insulation.

Standard with 25mm test hole

Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

SPECIFICATIONS

Specifications

Model

LDF-40H105(A)

Shelf/drawer

N

Cooling method

Direct cooling

Defrost

Manual

Refrigerant

HC-R290

Power consumption(kWh/24h)

1.65

Noise(db)

50

Ambient temperature(℃)

10~32

Temperature range(℃)

-10~40

Cooling system

Compressor brand/QTY

CUBIGEL/1

Condenser

Wire tube

Sensor

NTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

120W

Current(A)

1.05

Material

Inside material

Stainless steel

Outside material

Color sprayed   steel

Insulation

PURF

Size

Capacity(L/cu.ft)

105\3.70

NT./GT.(kg)

62\70

Exterior size(W*D*H)(mm)

680×580×935

Interior size(W*D*H)(mm)

480×380×665

Package size(W*D*H)(mm)

740×680×970

Alarm

High/low temperature

Y

Power failure

Y

Sensor error

Y

Filter screen check

N

Temperature controller   failure

Y

Low battery

N

Condenser clean

N

High ambient temperature

N

Door ajar

N

Accessories

Foot

Y

Castor

Y

Inside door

N

Test hole QTY/diameter

1/25MM

USB port

N

Power failure backup   system(alarm)

N

Remote alarm port

N

Other

Certification

ISO9001, 13485, 14001,   CE
