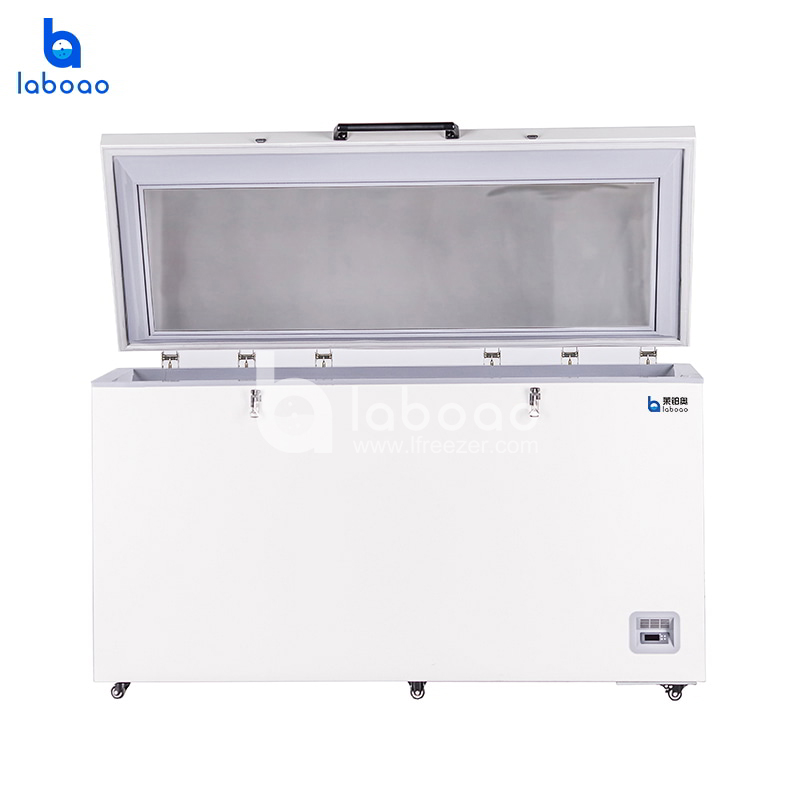

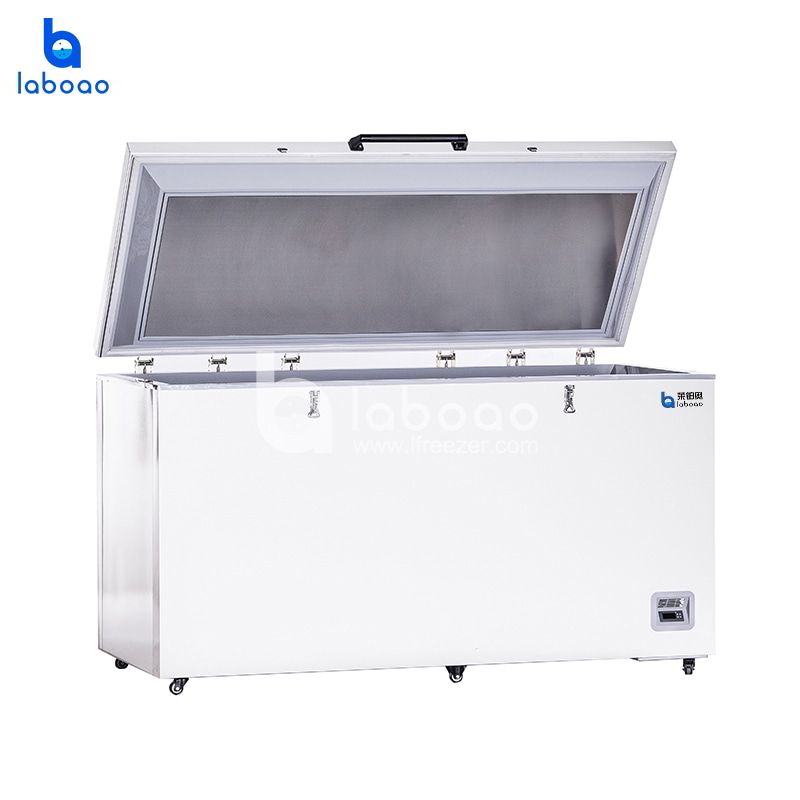

485L -40℃ Medical Freezer

LDF-40H485
LABOAO offers the 485L -40℃ Medical Freezer from china manufacture. This product is designed to store vaccines, blood plasma, and many other biological materials. installations can be found in researching institutions and clinical sites in life science, electronic testing and medical markets.
  • Volume485L
  • Temperature Range-10°C~-40°C
  • Power295W
  • Net Weight124kg
  • Interior Dimensions1455×525×665mm
  • Exterior Dimensions1655×755×915mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

OVERVIEW

KEY FEATURES

Chemically stable, CFC -free, commercially available and environmentally safe refrigerant.

Microprocessor control, adjustable temperature range: -20℃ to -40℃ LED digital display and increment at 0.1℃.

Permanently lubricated cooling fan for safety and longevity.

Wide voltage band for 187V~242V

SAFETY

Multiple malfunction alarms to detect high and low temperature, sensor error, power failure, temperature controller malfunction.

Two types of alarm indications: audible buzzing and visual flashing light.

CHARACTERISTIC FUNCTION

Door lock design to avoid abnormal door open

Big screen for easy observation

Standard testing hole

RELIABILITY

High density CFC-free urethane foam insulation.

Standard with 25mm test hole

Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage

SPECIFICATIONS

Specifications

Model

LDF-40H485

Shelf/drawer

N

Cooling method

Direct cooling

Defrost

Manual

Refrigerant

HC-R290

Power consumption(kWh/24h)

3.45

Noise(db)

55

Ambient temperature(℃)

10~32

Temperature range(℃)

-10~40

Cooling system

Compressor brand/QTY

CUBIGEL/1

Condenser

Wire tube

Sensor

NTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

295W

Current(A)

2.45

Material

Inside material

Stainless steel

Outside material

Color sprayed   steel

Insulation

PURF

Size

Capacity(L/cu.ft)

485\17.12

NT./GT.(kg)

124\138

Exterior size(W*D*H)(mm)

1655×755×915

Interior size(W*D*H)(mm)

1455×525×665

Package size(W*D*H)(mm)

1750×875×1050

Alarm

High/low temperature

Y

Power failure

Y

Sensor error

Y

Filter screen check

N

Temperature controller   failure

Y

Low battery

N

Condenser clean

N

High ambient temperature

N

Door ajar

N

Accessories

Foot

Y

Castor

Y

Inside door

N

Test hole QTY/diameter

Optional

USB port

N

Power failure backup   system(alarm)

N

Remote alarm port

N

Other

Certification

ISO9001, 13485, 14001,   CE
