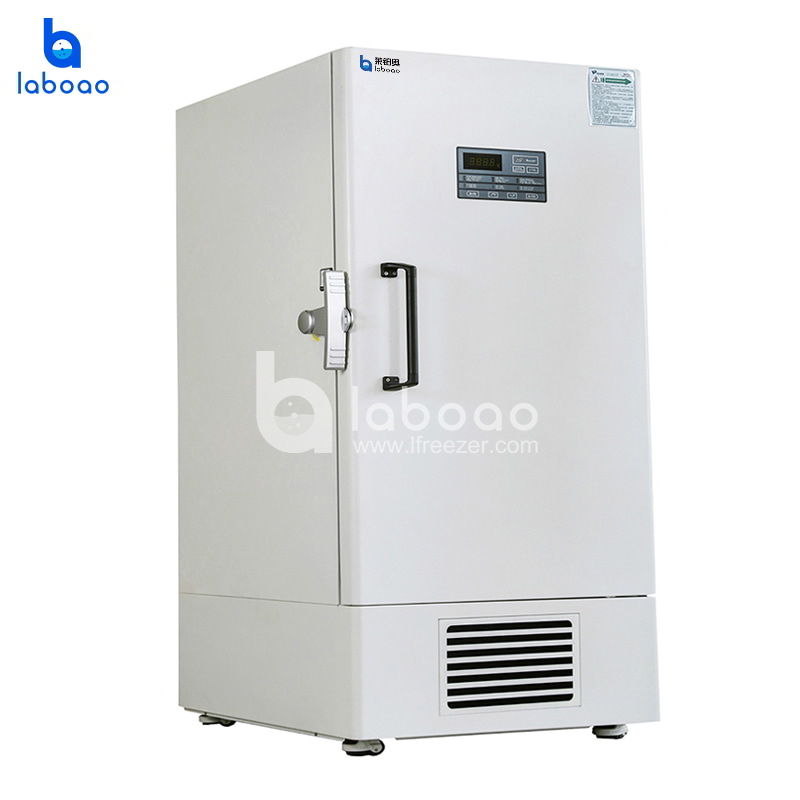

838L -86°C Ultra Low Temperature Freezer with Self-Cascade System

LDF-86V838E
LABOAO offers the 838L -86°C Ultra low temperature freezer with self-cascade system from china manufacture. It's suitable for applying in hospitals, blood bank, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, etc.
  • Volume838L
  • Temperature Range-40℃~-86℃
  • Power840W
  • Net Weight275kg
  • Interior Dimensions894×718×1310mm
  • Exterior Dimensions1170×1060×1994.5mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

OVERVIEW

SAFETY

Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient , abnormal voltage, thermostat failure, low battery, condenser clean, door ajar.

Capable of producing two types of alarm outputs, audible buzzer and visible flashing light.

Door open feature standard and USB port for temperature date downloading standard on upright models. Remote alarm contacts.

KEY DESIGN FEATURES

Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment Settable high temperature and low temperature alarms. Automatic clean-filter alarm and sensor error alert. Adjustable storage shelf height Optional temperature recorder, storage racks and storage box

INSTALLATION AND APPLICATION

Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature

FILED PROVEN RELIABILITY

Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber. Specialized control system design for a well-balanced operation of cascade refrigeration system. Positive filed proven reliability record.

ENERGY SAVING

Unique door seal design for the minimum loss of cold temperature during a door opening.

High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.

SPECIFICATIONS

Specifications

Model

LDF-86V838E

Shelf/drawer QTY

Stainless steel shelf/3

Cooling

Direct cooling

Defrost

Manual

Refrigerant

Mixed-gas

Power Consumption(kWh/24h)

24

Noise(db)

55

Ambient temperature()

10~32

Temperature range()

-40~-86

Cooling system

Compressor brand/QTY

SECOP/2

Sensor

PTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

840W

Current(A)

6.5

Material

Inside material

Stainless steel

Outside material

Color sprayed steel

Insulation

PURF

Size

Capacity(L/cu.ft)

838\29.59

NT./GT.(kg)

275/305

Exterior size(W*D*H)(mm)

1170×1060×1994.5

Interior size(W*D*H)(mm)

894×718×1310

Package size(W*D*H)(mm)

1265×1105×2210

Frozen Racks

Racks

24(5X5)

Boxes(2 Inches)

600

Samples(2ml)

60000

Alarm

High/low temperature

Y

Power failure

Y

Abnormal voltage

Y

Sensor error

Y

Filter screen check

Y

Thermostat failure

Y

Low battery

Y

Condenser clean

Y

High ambient temperature

Y

Door ajar

Y


Castor

Y

Inside door

2

Test hole QTY/diameter

1/25MM

USB port

Y

Chart recorder

/

Data logger

Optional

Power failure backup system(alarm)

72h

Remote alarm port

Y

CO2 back up system

Optional

LN2 back up system

Optional

Certification

Certification

ISO,CE
