OVERVIEW
FILED PROVEN RELIABILITY

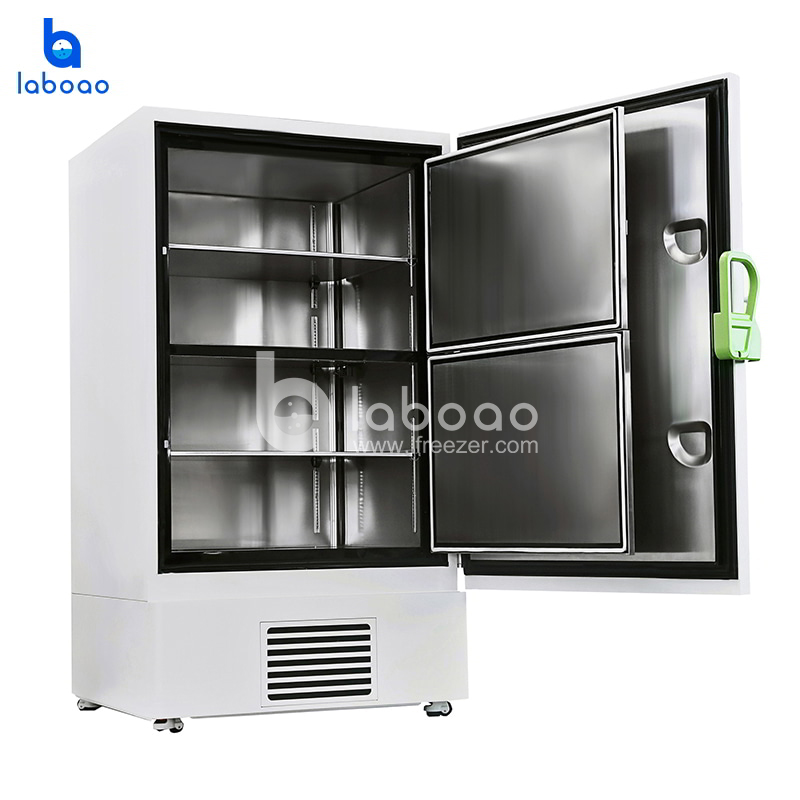

Unique insulated inner door design for four separate storage compartments to minimize frost buildup inside the chamber.
Specialized control system design for a well-balanced operation of cascade refrigeration system. Positive filed proven reliability record.
ENERGY SAVING
Unique door seal design for the minimum loss of cold temperature during a door opening.
High performance VIP insulation panels to minimize cabinet heat gain and to improve temperature stability.
SAFETY
Malfunction alarms including high and low temperature, power failure, sensor error, clean-filter, and extremely high ambient , abnormal voltage,thermostat failure, low battery, condenser clean, door ajar.
Capable of producing two types of alarm outputs, audible buzzer and visible flashing light. Door open feature standard and USB port for temperature date downloading standard on upright models. Remote alarm contacts.
KEY DESIGN FEATURES
Microprocessor-controlled system designed for controlled rage of -40℃ to -86℃ for cabinet space with 1℃ increment Settable high temperature and low temperature alarms.
Automatic clean-filter alarm and sensor error alert. Adjustable storage shelf height Optional temperature recorder, storage racks and storage box system, when one system breakdown, the other system could maintain the inner temperature at -70℃.
INSTALLATION AND APPLICATION
Wide rage operating voltage system from 187V to 242V designed to allow units installed in areas with poor voltage condition Suitable for 10℃ to 32℃ambient temperature
