105L -86°C Horizontal Ultra Low Temperature Freezer

LDF-86H105
LABOAO offers the 105L -86°C Horizontal ultra low temperature freezer from china manufacture. It's suitable for applying in hospitals, blood bank, health and disease prevention systems, colleges and universities, research institutions, the electronic industry, laboratories in colleges & universities, biological engineering, etc.
  • Volume105L
  • Temperature Range-40~-86℃
  • Power455W
  • Net Weight42kg
  • Interior Dimensions480×380×665mm
  • Exterior Dimensions680×580×935mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

DETAILS

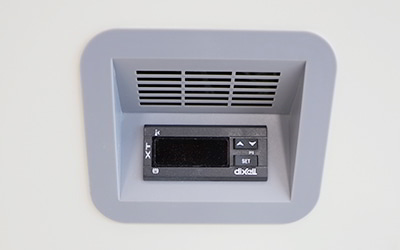

105L -86°C Horizontal Ultra Low Temperature Freezer detail - High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.

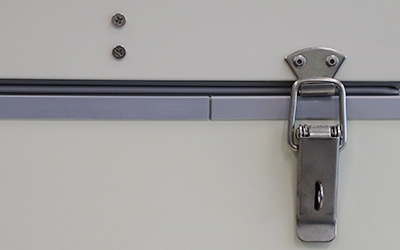

105L -86°C Horizontal Ultra Low Temperature Freezer detail - Safety door lock design to prevent abnormal door open.
Safety door lock design to prevent abnormal door open.

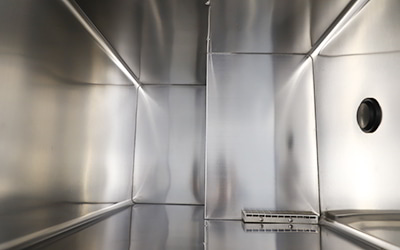

105L -86°C Horizontal Ultra Low Temperature Freezer detail - High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.

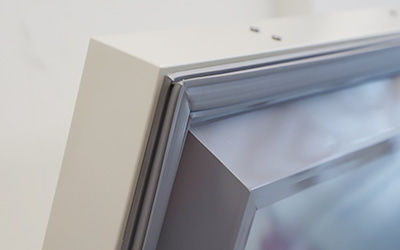

105L -86°C Horizontal Ultra Low Temperature Freezer detail - Excellent door seal, which provides maximum protection against thermal intrusion.
Excellent door seal, which provides maximum protection against thermal intrusion.

VIDEO

OVERVIEW

CHARACTERISTIC FUNCTION

Safety door lock design to prevent abnormal door open Wide voltage for AC187V AC242V Mute design for salient needed environment Digital display with big screen, easy to check Excellent thermal insulation peormance with silicone door seal design (second door seal optional) Mobile and fixable wheel for move

BOX

The box is made of high quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process with elegant orange powder coating. High-class 304 SUS inner box, durable and reliable.

SAFETY

Temperature high/low alarm, sensor malfunction alarm, thermostat failure alarm Audible and visible alarm Keyboard lockable, password protection o pe change running parameter randomly Display running parameter with real-time monitoring to guarantee the stability of freezer

TEMPERATURE CONTROL MODE

With the international famous brand computer temperature control system to keep the inner temperature accurate and stable. Temperature adjusted from -40℃~-86℃High light digital display High/low temperature alarm, the alarm temperature can be set as needed Platinum esiance temperature sensor, sensing temperature accurately

REFRIGERATION SYSTEM

Imported brand compressor work with CFC-Free environmental refrigerant High density insulation foam layer with better heat preservation effect Optimized self-cascade refrigeration system to provide faster cooling speed with lower power consumption

SPECIFICATIONS

Specifications

Model

LDF-86H105

Shelf/drawer QTY

/

Cooling

 Direct   cooling

Defrost

Manual

Refrigerant

Mixed-gas

Power Consumption(kWh/24h)

3.8

Noise(db)

50

Ambient temperature()

10~32

Temperature range()

-40~-86

Cooling system

Compressor brand/QTY

Cubigel/1

Sensor

PTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

455W

Current(A)

2.2

Material

Inside material

Stainless steel

Outside material

Color sprayed steel

Insulation

PURF

Size

Capacity(L/cu.ft)

105\3.70

NT./GT.(kg)

42/45

Exterior size(W*D*H)(mm)

680×580×935

Interior size(W*D*H)(mm)

480×380×665

Package size(W*D*H)(mm)

770×705×1090

Frozen Racks

Racks

4(11X1,6X1)

Boxes(2 Inches)

34

Samples(2ml)

3400

Alarm

High/low temperature

Y

Power failure

/

Abnormal voltage

/

Sensor error

Y

Filter screen check

/

Thermostat failure

Y

Low battery

/

Condenser clean

/

High ambient temperature

/

Door ajar

/


Castor

Y

Inside door

/

Test hole QTY/diameter

1/25MM

USB port

/

Chart recorder

Optional

Data logger

Optional

Power failure backup system(alarm)

/

Remote alarm port

Y

CO2 back up system

Optional

LN2 back up system

Optional

Certification

Certification

ISO.CE
