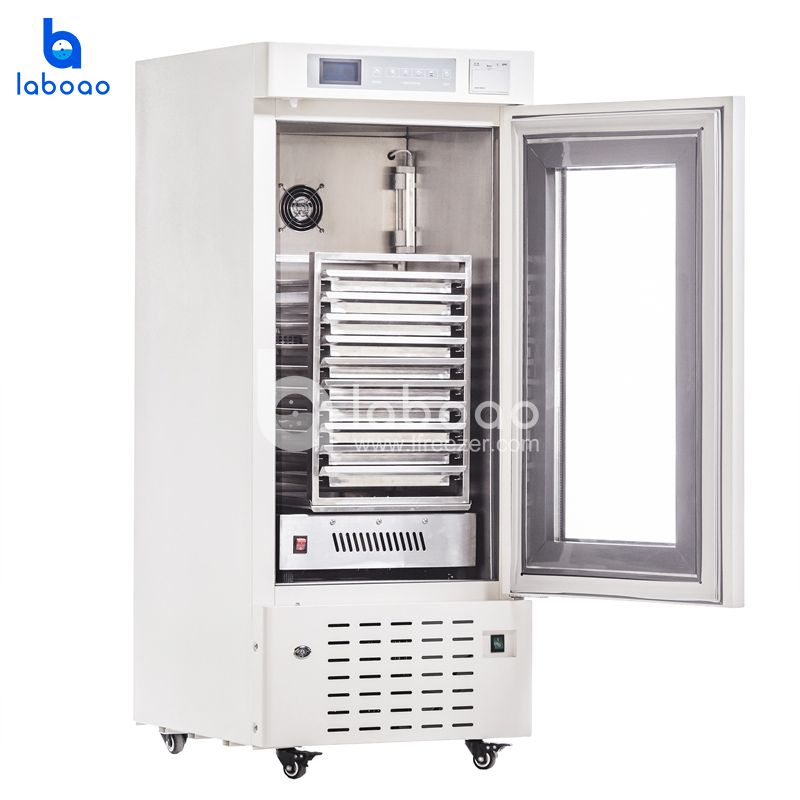

22℃ 10L Platelet Temperature Storage Incubator

LDC-10
The 10L platelet constant temperature storage box is used for short-term storage of platelets, biological preparations or laboratory books. It can also store chemical reagents that require constant temperature and slow reaction. It is suitable for blood supply units such as blood centers, central blood stations, hospital blood transfusion departments, and blood banks.
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

OVERVIEW

The refrigerator is equipped with a SUS oscillator and a mirrored SUS rack. The box uses high-density non-CFC foam material, reasonable air duct design cabinet, and axial fan to make the internal temperature more uniform and accurate. With UV poison, the disinfection time can be set freely, and the ultraviolet light will be extinguished when the door is opened to protect the human body. A temperature printer can be set as needed.

FEATURES

1. Stainless steel oscillator, mirror stainless steel shelf, liner, high density non-CFC polyurethane foam layer box, precise temperature control

2.EBM condensation fan, fluorine-free environmentally friendly refrigerant, fast cooling speed and good energy saving effect

3. UV disinfection, you can set the disinfection time, after the door is opened, the UV lamp will extinguish itself.

4. Store platelets (20 ° C ~ 24 ° C), biological reagents (2 ° C ~ 40 ° C), chemical products stored in (2 ° C ~ 40 ° C)

5. Suitable for hospitals, blood stations, research institutions and university laboratories

6. UV disinfection, free set disinfection time

7. Can set the temperature printer as needed

8. Wide voltage from 187V~242V

9. Power on/off switch for easier operation

10. Double transparent insulated glass door for easy use

11. Large numbers show easy observation

SPECIFICATIONS



Specifications

Model

LDC-10

Shelf/drawer QTY

Drawer

Cooling method

Forced air   cooling

Defrost

No frost

Refrigerant

R134a

Power   consumption(kWh/24h)

4.4

Noisedb)

50

Ambient   temperature

10~32

Temperature   range

20~24

Cooling system

Compressor brand/QTY

Embraco/1

Sensor

NTC

Temperature   controller

Microprocessor

Display

Digital display

Power

Voltage/frequencyV/Hz)

220/50Hz

PowerW)

280W

CurrentA)

1.27

Material

Inside material

SUS

Outside material

Colored Spray   Steel

Insulation

PU

Size

CapacityL/cu.ft)

10

Blood bags(450ml)/Drawer

20 /10 layers

NT./GT.kg)

80/86

Exterior size(W*D*H)(mm)

522×600×1300

Interior   size(W*D*H)(mm)

432×462×728

Package   size(W*D*H)(mm)

588*677*1440

Alarm System

High/low   temperature

Y

Power failure

Y

Sensor   malfunction

Y

Low baterry

Y

Door ajar

Y


Caster

Y

Outer door /   Type

1Foamed glass door

Test hole

Optional

Light

UV Light

Temperature   recorder

Optional

Others

Certification

0
