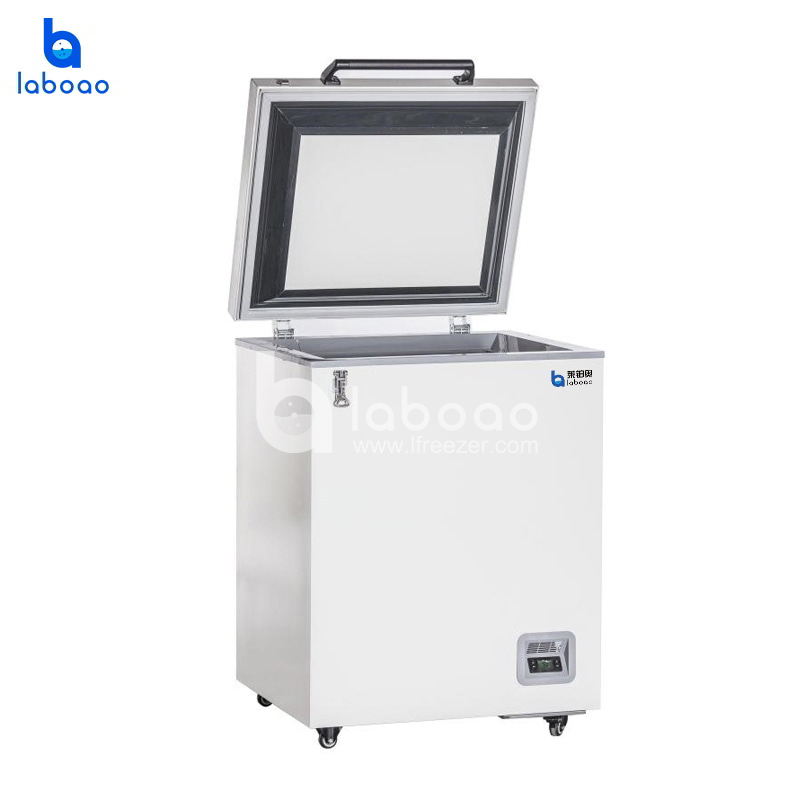

105L -60℃ Horizontal Deep Freezer

LDF-60H105
LABOAO offers the 105L -60℃ Freezer from china manufacure. Professional storage of tuna, using ultra-low temperature rapid freezing technology, so that the center temperature of the tuna can be reduced to below -60C in a short period of time, which can maintain the biological activity and nutrients of the fish for a long time. It can be used for scientific research, low temperature test of special materials, low temperature resistance test of frozen biological materials, vaccines, biological products, military products, etc., suitable for scientific research institutes, electronics industry, chemical industry, hospitals, health and epidemic prevention systems, university laboratories , Military enterprises, etc.
  • Volume105L
  • Temperature Range-25℃~-60℃
  • Power280W
  • Net Weight62kg
  • Interior Dimensions680*580*935mm
  • Exterior Dimensions480*380*665mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

105L -60℃ Horizontal Deep Freezer detail - High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
1. High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
105L -60℃ Horizontal Deep Freezer detail - Safety door lock design to prevent abnormal door open.
2. Safety door lock design to prevent abnormal door open.
105L -60℃ Horizontal Deep Freezer detail - High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
3. High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
105L -60℃ Horizontal Deep Freezer detail - Excellent door seal, which provides maximum protection against thermal intrusion.
4. Excellent door seal, which provides maximum protection against thermal intrusion.

OVERVIEW

KEY FEATURES

Chemically stable, CFC-Free, commercially available and environmentally safe refrigerant. Microprocessor control, adjustable temperature range: -25~-60C. LED digital display and increment at 0.1C, Permanently lubricated cooling fan for safety and longevity

SAFETY

Multiple malfunction alarms to detect high and low temperature , sensor error, power off, temperaturecontroller malfunction, door ajar. Two types of alarm indications: audible buzzing andvisual flashing light.

STRUCTURAL DESIGN

Wide voltage band for 187V~242V

CHARACTERISTIC FUNCTION

door lock design to avoid abnormal door open, big screen for easy observation, standard testing hole

RELIABILITY

Corrosion proof cabinet interior design, Power failure protect: the device would be attack bythe high current when all devices restart simultaneously, the start-delay function wouldprotect device from the damage

SPECIFICATIONS



Specifications

Model

LDF-60H105

Shelf/drawer

/

Cooling method

Direct cooling

Defrost

Manual

Refrigerant

CFC-Free

Power consumption(kWh/24h)

4.2

Noise(db)

53

Ambient temperature()

10~32

Temperature range()

-25~-60

Cooling system

Compressor brand/QTY

CUBIGEL/1

Sensor

NTC

Temperature controller

Microprocessor

Display

Digital display

Power

Voltage/Frequency(V/Hz)

220/50Hz

Power(W)

280W

Current(A)

1.85

Material

Inside material

Stainless steel

Outside material

Color sprayed   steel

Insulation

PURF

Size

Capacity(L/cu.ft)

105\3.70

NT./GT. (kg)

62/70

Exterior size(W*D*H)(mm)

680×580×935

Interior size(W*D*H)(mm)

480×380×665

Package size(W*D*H)(mm)

740*685*1040

Alarm

High/low temperature

Y

Sensor error

Y

Thermostat failure

Y


Castor

Y

Inside door

/

Test hole QTY/diameter

1/25MM

USB port

/

Temperature recorder

Optional

Power failure backup system(alarm)

/

Other

Certification

ISO90011348514001,CE
