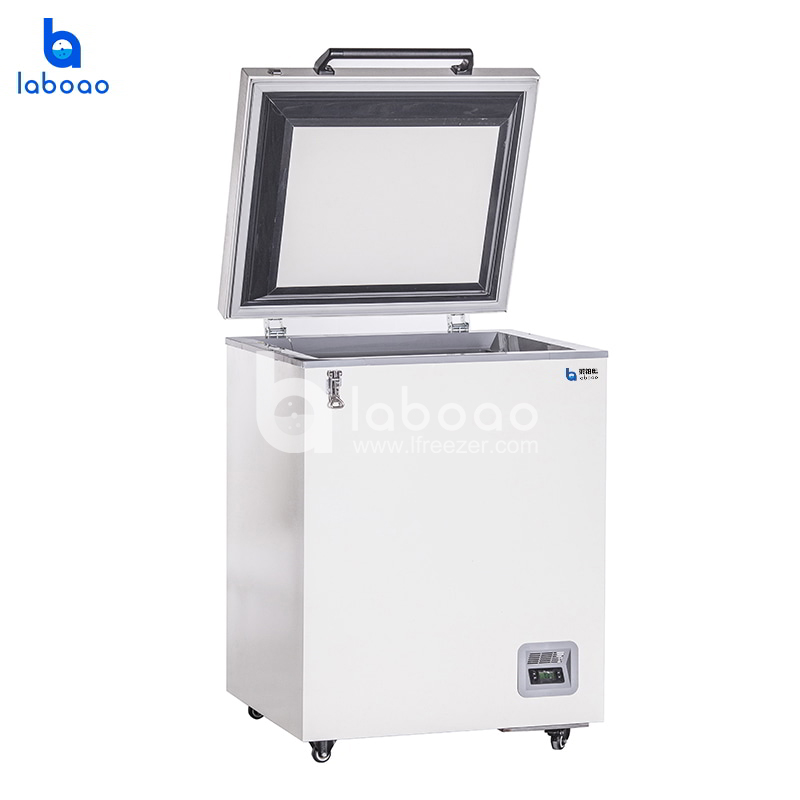

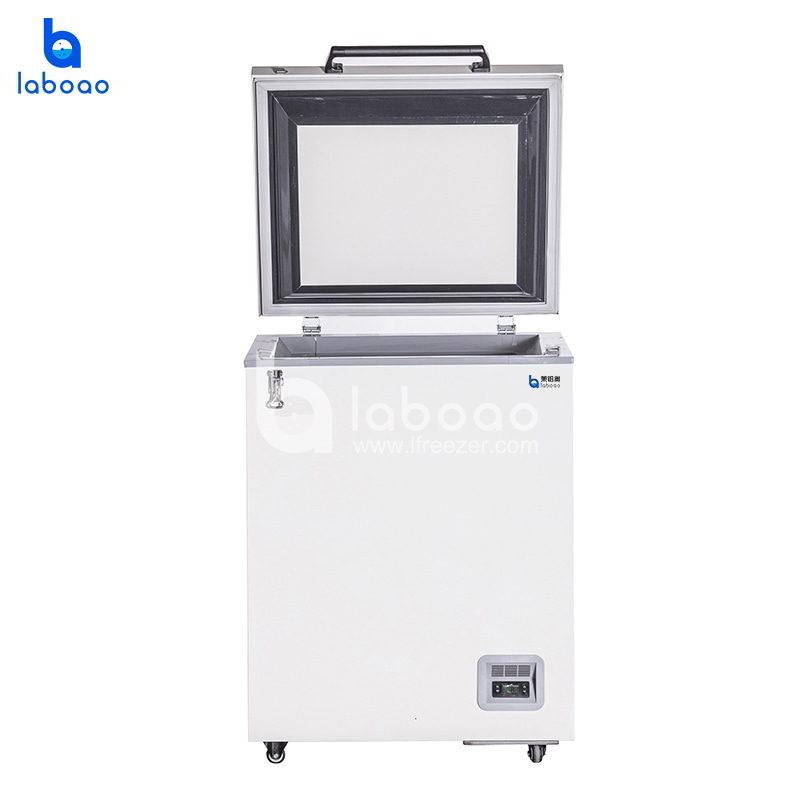

105L -25℃ Biomedical Freezer

LDF-25H105
LABOAO offers the 105L -25℃ biomedical freezer from china manufacture. This product is designed to store vaccines, blood plasma, and many other biological materials. installations can be found in researching institutions and clinical sites in life science, electronic testing and medical markets.
  • Volume105L
  • Temperature Range-10°C~-25°C
  • Power120W
  • Net Weight62kg
  • Interior Dimensions480×380×665mm
  • Exterior Dimensions680×580×935mm
Request QuotationChat Now
  • Whatsapp

    WhatsApp Chat

  • WeChat

    WeChat Chat

Download

DETAILS

105L -25℃ Biomedical Freezer detail - High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
1. High light digital display. Temperature adjusted from -40°C ~ -86°C. High/low temperature alarm, the alarm temperature can be set as needed.
105L -25℃ Biomedical Freezer detail - Safety door lock design to prevent abnormal door open.
2. Safety door lock design to prevent abnormal door open.
105L -25℃ Biomedical Freezer detail - High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
3. High quality cold rolled steel plate, and the surface is treated with advance anti-corrosion phosphatic spraying process.
105L -25℃ Biomedical Freezer detail - Excellent door seal, which provides maximum protection against thermal intrusion.
4. Excellent door seal, which provides maximum protection against thermal intrusion.

OVERVIEW


RELIABILITY

1. Chemically stable, CFC-free, commercially available and environmentally, safe refrigerant.

2. High density CFC-Free urethane foam insulation for rigidity and stable storage temperature.

3. Microprocessor control, digital display adjustable temperature rage: -10°C~-25°C.

4. LED digital display for clear observation.

Refrigeration system

1. Applied with international brand compressor, condenser fan, coil evaporator, filament tube condenser. Unique refrigeration technology to make better stability and faster cooling speed

SAFETY

1. Multiple malfunction alarms including high and low temperature , sensor error, power off, temperature controller malfunction, door ajar.

2. Two types of alarm indications: audible buzzing and visible flashing light.

3. Power failure protect: the device would be attack by the high current when all devices restart simultaneously, the start-delay function would protect device from the damage.

4. Controller password protect function to avoid change running parameter randomly.

KEY FEATURES

1. Independent inner door to avoid more cooling leaking out, and provide more stable inside temperature performance .

2. Upright side door with build-in handle for easy-opening; limit door hinge to prevent collision when door open.

3. Lockable caster design for customer to move as needed.

4. Wide voltage tolerance design with applicable voltage range of 187~242 V/AC.

SPECIFICATIONS

Specifications

Model

LDF-25H105

Shelf   (drawer)

/

Cooling   method

Direct cooling

Defrost

Manual

Refrigerant

HC-R290

Power   consumption(kWh/24h)

1.65

Noise(db)

50

Ambient   temperature(℃)

10~32

Temperature   range(℃)

-10~-25

Cooling system

Compressor   brand/QTY

CUBIGEL/1

Sensor

NTC

Temperature   controller

Microprocessor

Display

Digital display

Power

Voltage/frequency(V/Hz)

220/50Hz

Power(W)

120W

Current(A)

1.05

Material

Inside   material

Stainless steel

Outside   material

Color sprayed steel

Insulation

PURF

Size

Capacity(L/cu.ft)

105\3.70

NT.\GT.(kg)

62\70

Exterior   size(W*D*H)(mm)

680×580×935

Interior size(W*D*H)(mm)

480×380×665

Package size(W*D*H)(mm)

740×680×970

Alarm

High/low   temperature

Y

Power   off

Y

Sensor   malfunction

Y

Temperature   controller malfunction

Y

Door   ajar

N

Accessories

Caster

Y

Test   hole

1/25MM

Remote   alarm

N

Other

Certification

ISO9001,13485,14001, CE
