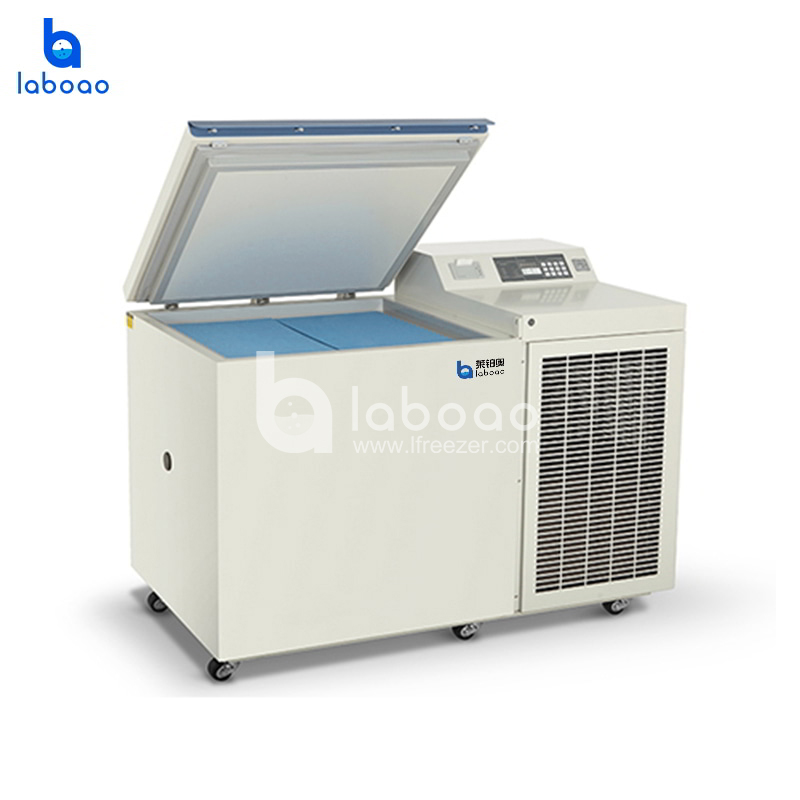

128L -164℃ Cryogenic Freezer

LDW-ZW128

LABOAO offers the 128L -164℃ Cryogenic Freezer from China manufacture, it can be used for scientific research, special material experiments, freezing red blood cells, white blood cells, skin, DNA/RNA, bones, bacteria, semen, biological products, etc. It is suitable for blood stations, hospitals, health and epidemic prevention systems, scientific research institutions, biological engineering, university laboratories, military industrial and mining enterprises, etc.

Volume128L
Temperature Range-110℃~-164℃
Interior Dimensions510*460*540mm
Exterior Dimensions1665*1000*1115mm

Request Quotation Chat Now

WhatsApp Chat
WeChat Chat

Download

OVERVIEW

TARGETED REFRIGERATION

Unique, high-efficient and recycling cooling system, a winner of second prize in national technology and invention award.

EXTREMELY LOW TEMPERATURE

With DW-ZW128, the company becomes the superior leader in the same industry that can produce equipment with the lowest temperature to -164℃ for mass production.

THREE-DIMENSIONAL THERMAL INSULATION

The VIP vacuum thermal insulation plate can lock cool air inside the cabinet and guarantee thermal insulation effect.

Refrigeration System

The single-pole lubrication compressor refrigeration technology has improved refrigeration capacity; International famous brand compressor, enabling fast refrigeration.

High-precision Temperature Control System

The high-precision microcomputer temperature control system and platinum resistor temperature sensors enable users to set temperature inside the cabinet within a range from -120 to -164℃(LDW-ZW128); digital temperature display, the running status is clearly displayed.

SPECIFICATIONS

Specifications	Model	LDW-ZW128
	Shelf/drawer	/
	Cooling method	Direct Cooling
	Defrost	Auto
	Refrigerant	Mixture gas
	Power consumption(kWh/24h)	/
	Noise(db)	/
	Ambient temperature(℃)	16℃~ 32C℃
	Temperature range(℃)	-110℃~-164℃
Cooling system	Compressor brand/QTY	HuaYi/1
	Sensor	PT100
	Temperature controller	Microprocessor
	Display	Digital display
Power	Voltage/Frequency(V/Hz)	380/50（V/HZ）
	Power(W)	/
	Current(A)	/
Material	Inside material	structure steel
	Outside material	Color sprayed steel
	Insulation	PURF
Size	Capacity(L/cu.ft)	128L
	NT./GT. (kg)	/
	*Exterior size(WDH)(mm)*	166510001115mm
	*Interior size(WDH)(mm)*	510460540mm
	*Package size(WDH)(mm)*	181510851304mm
Alarm	High/low temperature	Y
	Sensor error	Y
	Thermostat failure	Y
	Castor	Y
	Inside door	/
	Test hole QTY/diameter	1/25MM
	USB port	/
	Temperature recorder	/
	Power failure backup system(alarm)	/
Other	Certification	ISO9001, 13485, 14001,CE

6 Good Reasons To Choose LABOAO 128L -164℃ Cryogenic Freezer

The well-developed security system with multiple audible & visual alarm functions
The keyboard lock function and password protection function can prevent any adjustment of operating parameters without permission
Unique secondary foaming technology, super thick VIP insulation which greatly improves the insulation effect
VIP vacuum insulation board, tightly locks the cold air to ensure the great insulation effect
Optional single type upright racks ; optional alarm lamp, voltage compensation, remote alarm and liquid N2 backup system
Chest type with lid to be opened from the top, assisting balanced hinges to make it easily for casters to be fixed for easy movement and fixation
